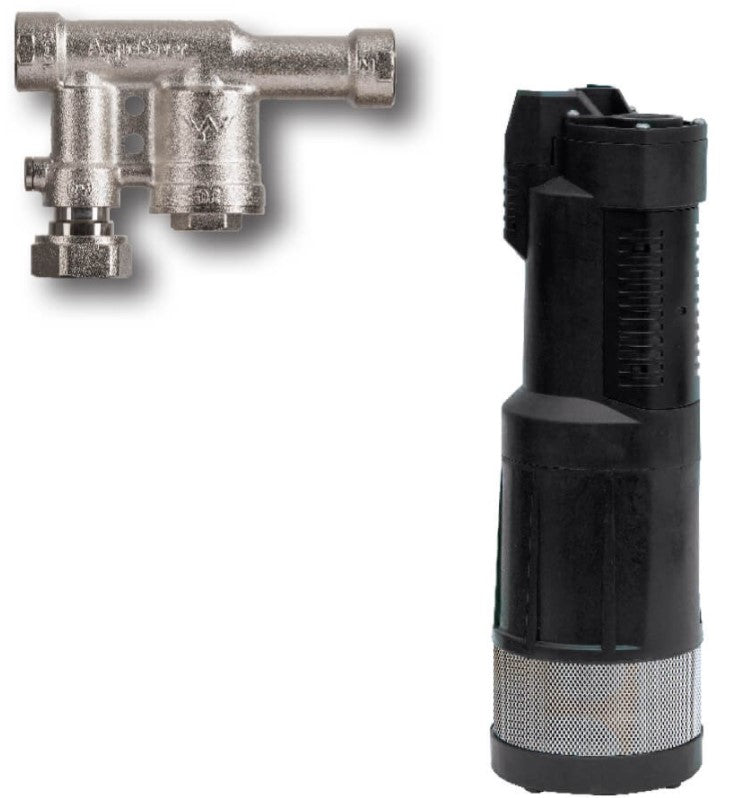

DAB A2-DIVERTRON1200 Submersible Pressure Pump & 3/4" AcquaSaver 0.75KW 240V (808364)

Save $513.90
SKU: DAB A2-DIVERTRON1200

Price:
Sale price$860.00 Regular price$1,373.90

Tax included Shipping calculated at checkout

Description

[shortdesc]DAB A2-DIVERTRON1200 Submersible Pressure Pump & 3/4" AcquaSaver 95L/MIN 48M 0.75KW [/shortdesc] [specification]
Technical Specifications
Brand DAB Pumps
Product Type Pressure System, AcquaSaver
Suitable For Clean Water
Bar 4.8 Bar
Approval Approved For Drinking Water
Cable (m) 15 m
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 95 L/min
Hp 1 Hp
kPa 486 kPa
Kilo Watts 0.75 kW
Head Range Category b. 40 - 59 m
Max Head (m) 48 m
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 9 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 750 W
[/specification]

Click for SPEC SHEET

DAB A2-DIVERTRON1200 Submersible Pressure Pump & 3/4" AcquaSaver

The pump is a light and compact high head submersible clean water automatic pressure system pump supplied wired and ready to install. The pump includes an electronic automatic restart pump control with dry run protection and ClayTech 3/4" AcquaSaver Rainwater/Mains changeover device.

Features

  • Fully automatic operation.
  • Shaft seal with sand protection boot.
  • 240V single phase motor with in-built auto reset thermal overload.
  • Multistage technopolymer submersible pump
  • Electronic Pump with Auto Restart. 9 Taps, 470kpa, 95l/min, 15m power cable
  • 2 year warranty
AcquaSaver Water Diversion Valve - 3/4 Inches
AcquaSaver Water Diversion Valve - 3/4 Inch Hydraulically Operated. Solid Brass Construction. Built-in Dual Check Valves. Prioritise the use of rainwater over mains water and will automatically switch over to mains water in the event of the rainwater tank running low.
The AcquaSaver® Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.
  • Watermark approved
  • Does not require regular maintenance
  • No electrical consumption - No electronic components
  • Solid brass construction - Fully weatherproof - Built to last
  • Suitable for any pressure pump with sufficient head pressure
  • Can be mounted in any position
  • Built-in dual check valve for backflow prevention
  • 2 Year warranty

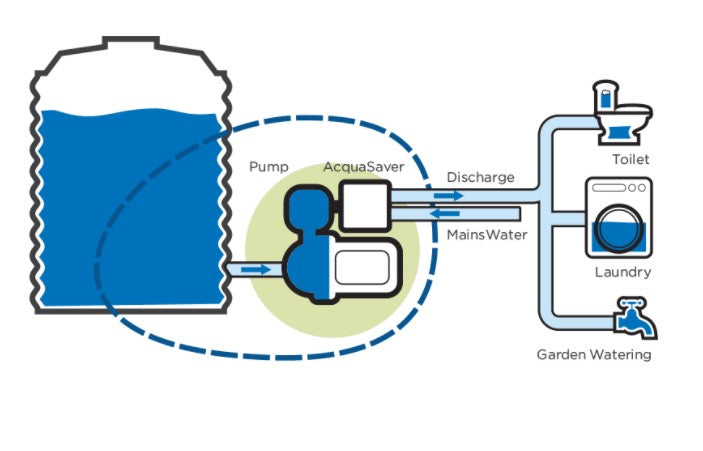

Operation

The AcquaSaver® Valve will always prioritize the use of rainwater over mains water when rainwater is available and will automatically switch over to mains water in the event of the rainwater tank running low or electrical failure

When rainwater has been replenished or power has been restored to the pump, the AcquaSaver valve will automatically prioritize back to rainwater.

The pump is only active when rainwater is being drawn from the water tank, it does not operate when the AcquaSaver Valve has switched to mains position.

The pump controller starts and stops the pump when it detects a demand - for example flushing a toilet or using a washing machine.

The operating mechanism of the AcquaSaver Valve is a unique patent design, it works by hydraulic water pressure created by the pump to close one inlet fully before opening the other inlet. This ensures an extremely reliable mechanism using few moving parts and no electronic components and no energy consumption.

Click for SPEC SHEET

DAB A2-DIVERTRON1200 Submersible Pressure Pump & 3/4" AcquaSaver

The pump is a light and compact high head submersible clean water automatic pressure system pump supplied wired and ready to install. The pump includes an electronic automatic restart pump control with dry run protection and ClayTech 3/4" AcquaSaver Rainwater/Mains changeover device.

Features

  • Fully automatic operation.
  • Shaft seal with sand protection boot.
  • 240V single phase motor with in-built auto reset thermal overload.
  • Multistage technopolymer submersible pump
  • Electronic Pump with Auto Restart. 9 Taps, 470kpa, 95l/min, 15m power cable
  • 2 year warranty
AcquaSaver Water Diversion Valve - 3/4 Inches
AcquaSaver Water Diversion Valve - 3/4 Inch Hydraulically Operated. Solid Brass Construction. Built-in Dual Check Valves. Prioritise the use of rainwater over mains water and will automatically switch over to mains water in the event of the rainwater tank running low.
The AcquaSaver® Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.
  • Watermark approved
  • Does not require regular maintenance
  • No electrical consumption - No electronic components
  • Solid brass construction - Fully weatherproof - Built to last
  • Suitable for any pressure pump with sufficient head pressure
  • Can be mounted in any position
  • Built-in dual check valve for backflow prevention
  • 2 Year warranty



Operation

The AcquaSaver® Valve will always prioritize the use of rainwater over mains water when rainwater is available and will automatically switch over to mains water in the event of the rainwater tank running low or electrical failure

When rainwater has been replenished or power has been restored to the pump, the AcquaSaver valve will automatically prioritize back to rainwater.

The pump is only active when rainwater is being drawn from the water tank, it does not operate when the AcquaSaver Valve has switched to mains position.

The pump controller starts and stops the pump when it detects a demand - for example flushing a toilet or using a washing machine.

The operating mechanism of the AcquaSaver Valve is a unique patent design, it works by hydraulic water pressure created by the pump to close one inlet fully before opening the other inlet. This ensures an extremely reliable mechanism using few moving parts and no electronic components and no energy consumption.

Technical Specifications
Brand DAB Pumps
Product Type Pressure System, AcquaSaver
Suitable For Clean Water
Bar 4.8 Bar
Approval Approved For Drinking Water
Cable (m) 15 m
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 95 L/min
Hp 1 Hp
kPa 486 kPa
Kilo Watts 0.75 kW
Head Range Category b. 40 - 59 m
Max Head (m) 48 m
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 9 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 750 W
